HDD Pilot Drilling Bit

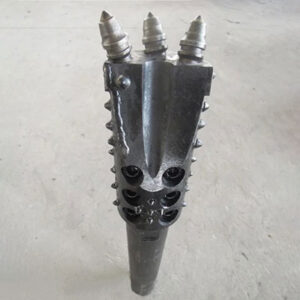

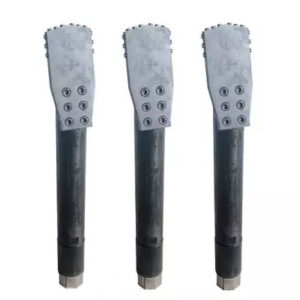

HDD Pilot Drilling Bit or Steering Drill Bit

The pilot drilling bit, also known as the steering drill bit, is a crucial tool in trenchless technology, especially for navigating through soil or soft formations. This specialized bit is for creating a precise pilot hole, which serves as a guide for subsequent drilling operations.

In soft ground conditions, the pilot drilling bit typically features a compact, streamlined design. It often incorporates a slanted or angled face to facilitate steering and directional changes. The cutting structure is usually made of durable materials like tungsten carbide to ensure longevity and efficient cutting performance.

During operation, the pilot bit is attached to the front of a drill string. As it rotates, it cuts through the soil, creating a small-diameter hole. The bit’s steering capability allows operators to navigate around obstacles and follow the desired path with high accuracy. This is particularly important in urban environments where underground utilities are dense.

Modern pilot bits often include integrated tracking systems. These systems provide real-time data on the bit’s position and orientation, enabling precise control over the drilling direction. Some advanced models also feature jetting nozzles that use high-pressure fluid to assist in cutting and clearing debris.

The efficiency of a pilot drilling bit in soft formations lies in its ability to maintain a stable borehole while minimizing soil disturbance. This reduces the risk of surface subsidence and ensures the integrity of surrounding structures. Proper selection and operation of the pilot bit are essential for successful trenchless installations, making it a key component in modern underground construction projects.
