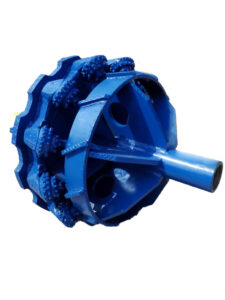

HDD Reamers 10″~80″ for Rock Hole Opener
HDD reamers for rock are essential tools in trenchless drilling or HDD. Check why we manufacture the best quality on rock hole openers.
| 产品参数 Products Specification | ||
| 外径 SIZE | mm | 1016 |
| inch | 40 | |
| 扣型(REG) Thread（REG） | FST1000 | |
| 重量 毛/净(kg) Weight G/N（kg） | 900/850 | |
| 产品高度(mm) Height (mm) | 1016 | |
| 包装尺寸 (mm) Package Size (mm) | 1016*1016*1100 | |
What are hdd reamers for rock
Rock reamers are essential tools in trenchless drilling , designed to enlarge boreholes in rocky formations. They were developed to address the challenges of drilling through hard rock, where traditional methods often fail. The invention of roller cone-based reamers revolutionized the industry by providing efficient, reliable cutting performance.
These reamers feature roller cones as cutting teeth, which rotate to crush and grind rock. The design focuses on durability, with hardened materials to withstand abrasion, and optimized cone arrangements for balanced cutting force. Additionally, fluid channels are for cooling the cones and removing debris.
During HDD operations, operators must ensure proper alignment to avoid deviation. Regular maintenance, such as checking cone wear and lubrication, is crucial. Drilling parameters, like rotation speed and thrust, should be adjusted based on rock hardness. Proper debris removal prevents clogging and maintains efficiency.

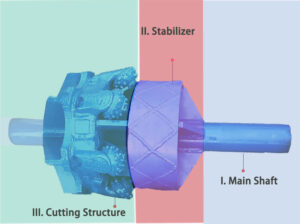

Rock reamer’s structure
Rock reamer consists of three parts, the 1st is a main shaft which is always made from Drill Collar material. As this material is strong and resilient, much more than the material of conventional drill pipes. It bears well the weight of rock reamers and the tremendous Torque generated by this weight and the drill rig rotation.
The 2nd part is Stabilizer, A.K.A. Centralizer. It keeps the BHAs (Bottom Hole Assembly) in the center of the hole as possible as they could be. As once they are in a place out of the hole center, the hole shape would be anomalous or even more it would totally detroy the planned path of the hole.
The 3rd part is also very important, it’s a weapon or a stormtrooper in this battlefield. The cutting part must be hard and abrasive enough. Let’s say it decides to the greatest extent whether the drilling task succeeds or not.
How we manufacture a best hdd reamers

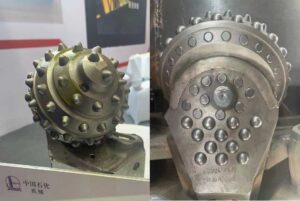

Kingdream roller cones
About Kingdream
Kingdream Public Limited Company is a Chinese company, a leading manufacturer of drill bits in Asia.
They are a State Key New & Hi-tech enterprise and a State First Grade Enterprise in China, indicating their technological prowess and significance in the industry.
Kingdream is a subsidiary of China Petroleum & Chemical Corporation (CPCC) (Sinopec), one of the largest energy and chemical companies in China.
- Extensive product range: Kingdream offers a wide variety of drill bits to cater to different drilling needs.
- Technological expertise: They invest in research and development to create innovative and efficient drill bits.
- High-quality manufacturing: Their production processes and equipment ensure the reliability and performance of their products.
- Strong market position: Kingdream is a recognized and trusted brand in the drilling industry.
Other Q & A
Q: What are the terms of payment?
A: For commodities in stock, we request a 100% prepayment by TT, upon which, we’ll deliver in 3-5 days; but if the commodities need some time to manufacture, a 30% prepayment by TT shall be transmitted, and the rest shall be transferred before shipment.
Q: What are your products always available in stock, or those always need time to manufacture?
A: Typically, they are tri-cone bits. We stock from popular models directly from KINGDREAM factory, like 6”/6 ½”/8 ½”/9 1/2”/12 ¼” IADC537/617/637.
On the other hand, hole openers(reamers) always need to be customized. Because customers’ drill rigs vary so much, we need customize the thread types for them on the reamers. Especially for rock reamers, the customization not only comes from the thread type, but also from the IADC code and the distribution density of the roller cones. Lastly, sometimes we need design the reamers according to customer’s drilling plan, especially the design of centralizer size.
As for other products, it depends. Mud motor is more like to be available as there’s not so much customization. Kindly inquire from us if you want to check our stock status.
Q: What a brand is KINGDREAM?
A: KD is a subsidiary of SINOPEC, China’s state-owned oil company. It was and is ranked the 2st among the top 500 companies all over the world.
KINGDREAM is the top-tier company for drill bit design and manufacture. Including tri-cone bit (Roller drilling bit) and PDC (Polycrystalline Diamond Compact) bit and other drill bits.
Q: What you’re marketing are genuine KINGDREAM products?
A: Of course. If you find we sell fake KD drill bits, we’d compensate you 10 times of your commodity value.
Q: Why is it better to have more roller cones on a rock reamer?
A: The denser the roller cones are on a rock reamer, the less average pressure on each roller cone, the longer serving time they have, the more refined hole shape you get, and the less gas consumed on the drill rig.
